Customizing the Product Display Module in a WooCommerce Theme with Elementor Pro: A Complete Tutorial

WooCommerce is one of the most popular e-commerce plugins for WordPress, and the Elementor On the other hand, it is a popular visual page editor. When the two are combined, it is possible to create completely personalized product showcase pages without writing code.

This tutorial will explain in detail how to customize the product showcase module in your WooCommerce theme with Elementor (with Pro version features) to build more attractive and converting eCommerce pages.

I. Preparatory work

Before you begin, make sure that the following configuration has been completed:

• WordPress website installed and activated WooCommerce plug-in (software component)
• Elementor plug-in installed and enabled (Elementor Pro recommended)
• Use a WooCommerce-enabled theme (e.g. Hello Elementor, Astra, Blocksy, Kadence, etc.)
• Product information has been entered into the WooCommerce product catalog.

If you are using the free version of Elementor, there are some limitations to the visualization control, the Pro version unlocks all functional modules.

Second, the two ways to create a product display template

Elementor offers two mainstream ways to customize product presentation content:

Method 1: Quickly Build Product Blocks with WooCommerce Widgets

Ideal for building layouts such as home page testimonials area, category page product groups, horizontal sliders, etc.

Operational Steps:

• Open WordPress Backend → Pages → New Page

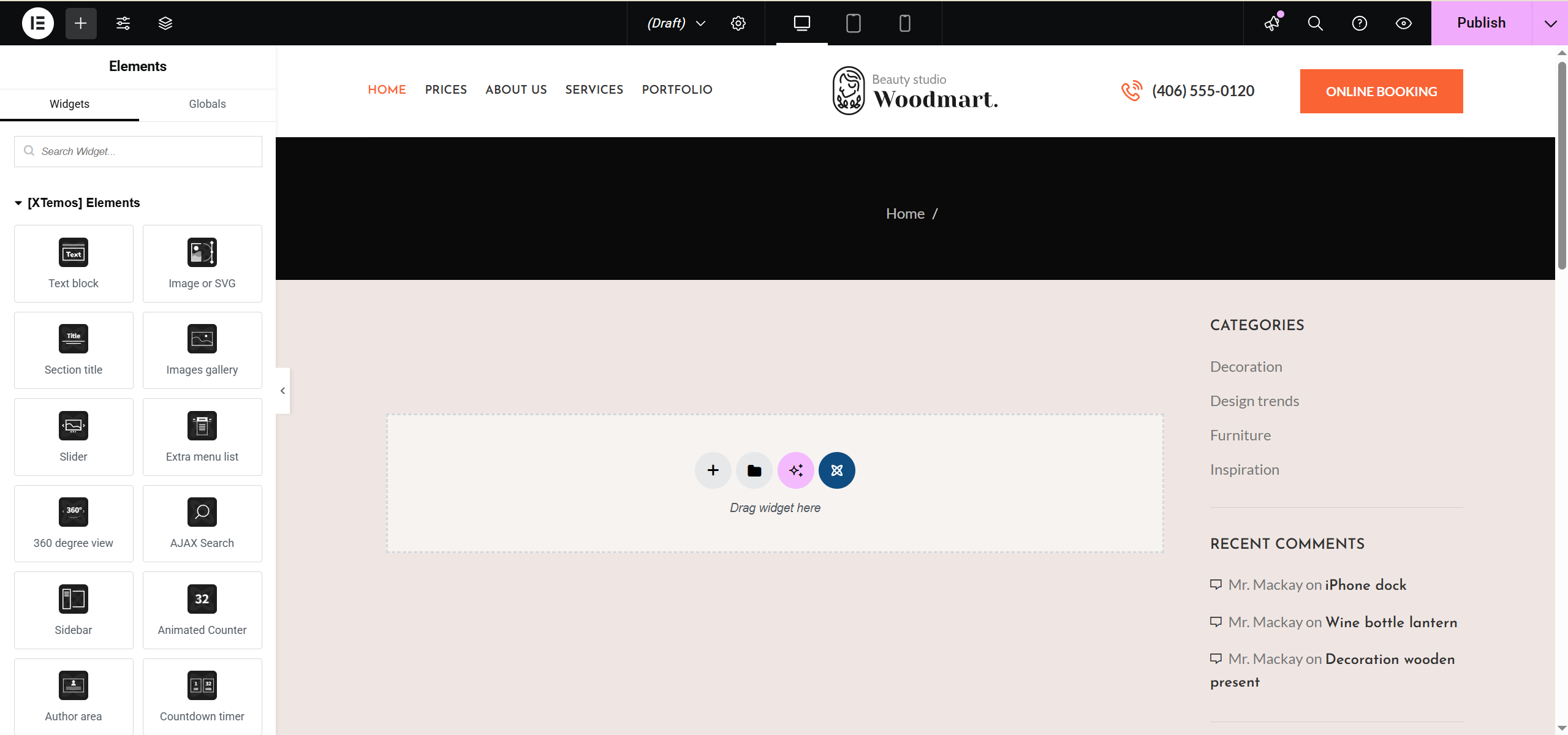

• Editing Pages with Elementor

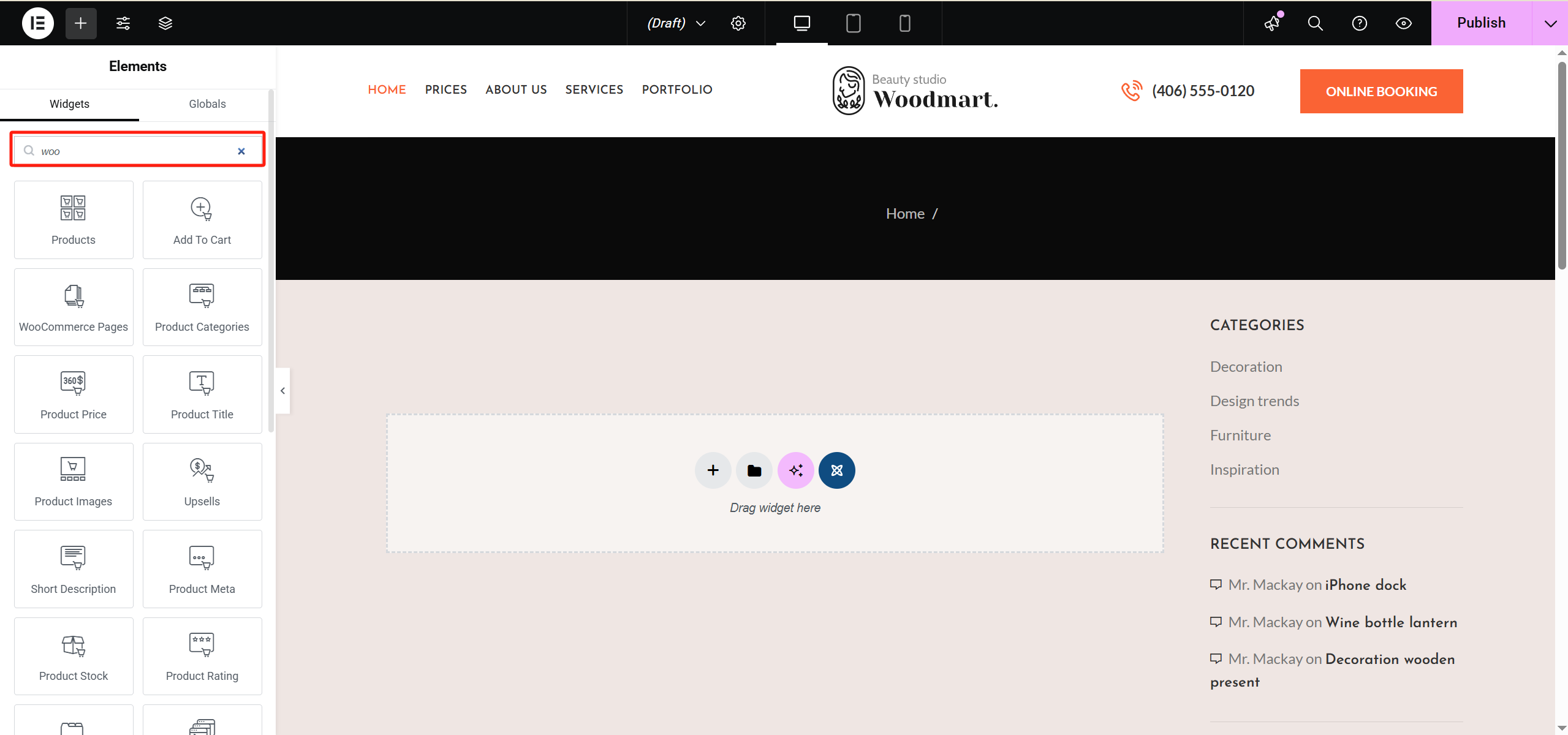

• Type "Woo" in the left-hand widget search box

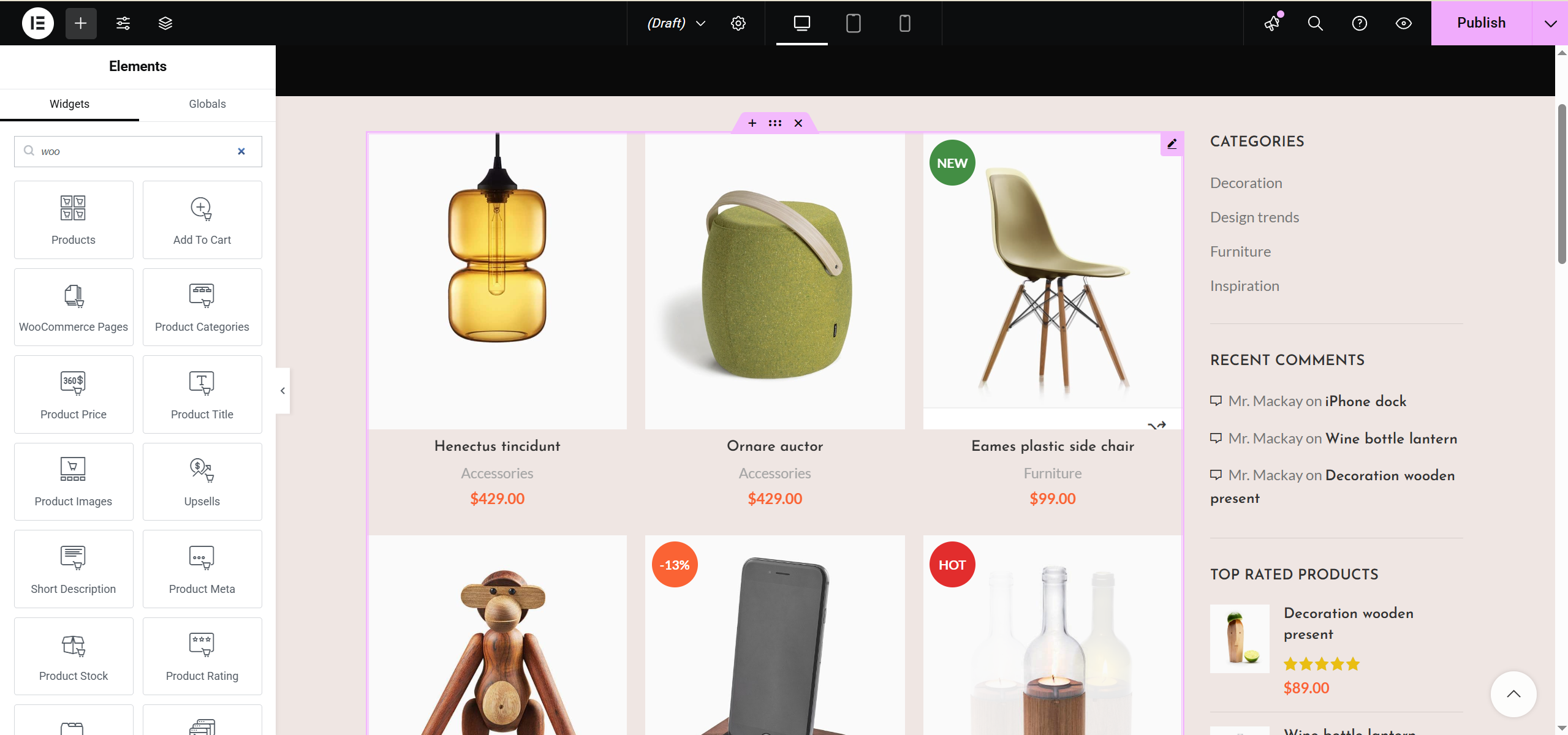

• Drag one of the following components:
  • Products: display multiple products, can be filtered by category, label or manual selection
  • Product Categories: Display product categories in a grid
  • Product Carousel: Building a Horizontal Scrolling Product Slider
  • Sale Products / Featured Products / Best Selling Products: Showing promotional, recommended and hot selling products respectively.

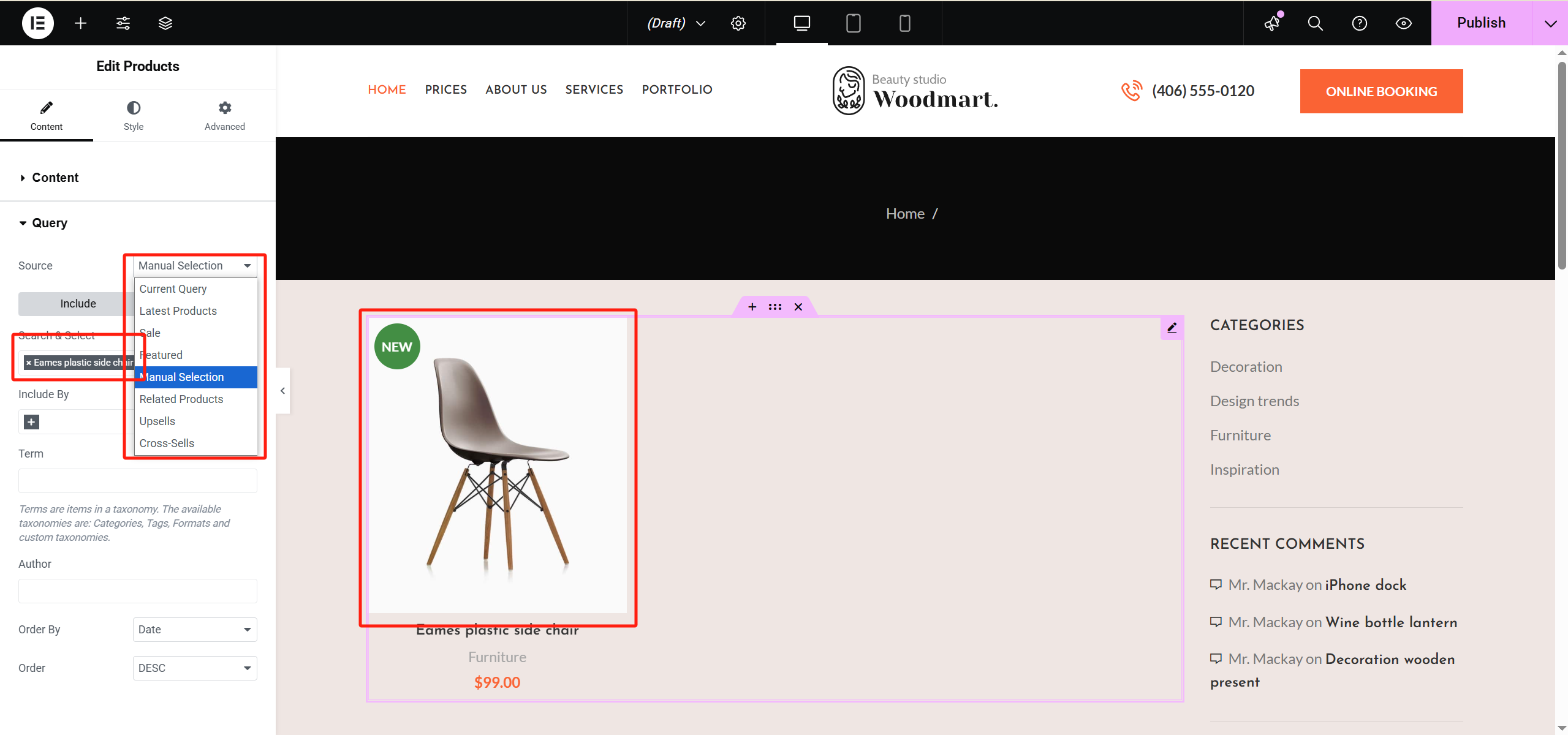

• Select the display conditions in the "Queries" tab

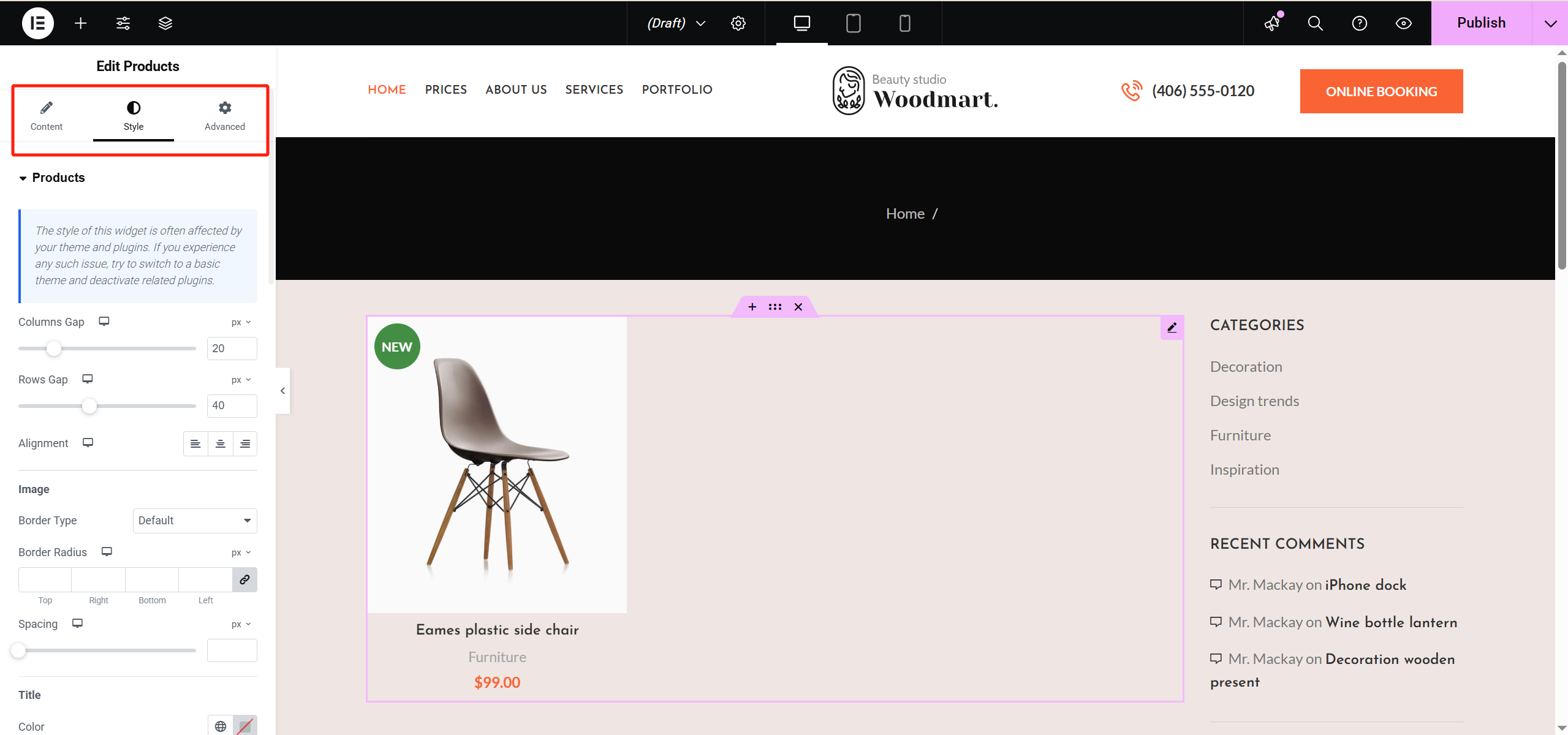

• Setting appearance options for product images, header styles, button styles, etc.

• Save and publish the page

Method 2: Customize individual product templates using the theme builder (Elementor Pro)

Suitable for reconstructionProduct Detail PageThe layout structure of headers, images, prices, buttons, etc. in the

Operational Steps:

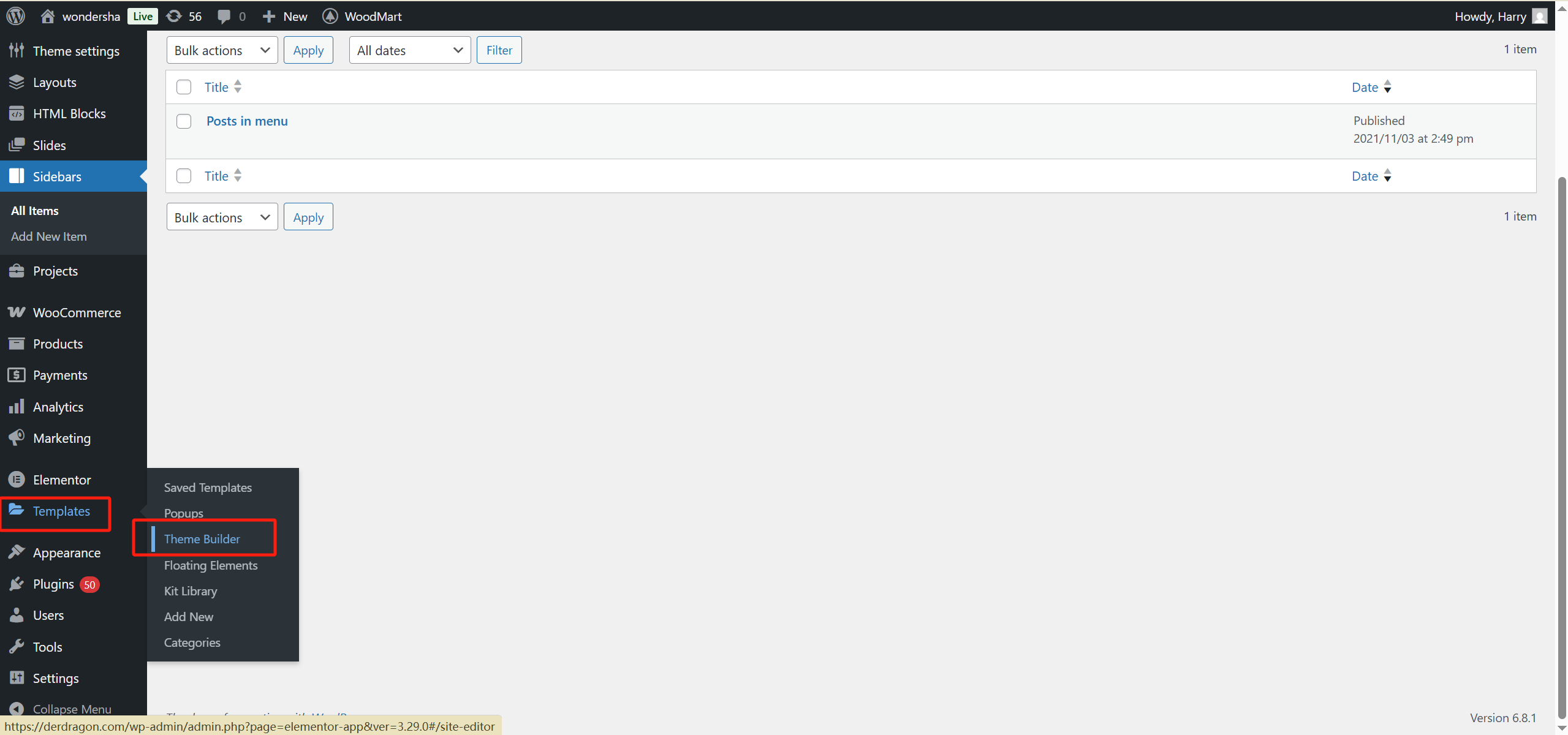

• Open Backend →Templates→ Theme Builder

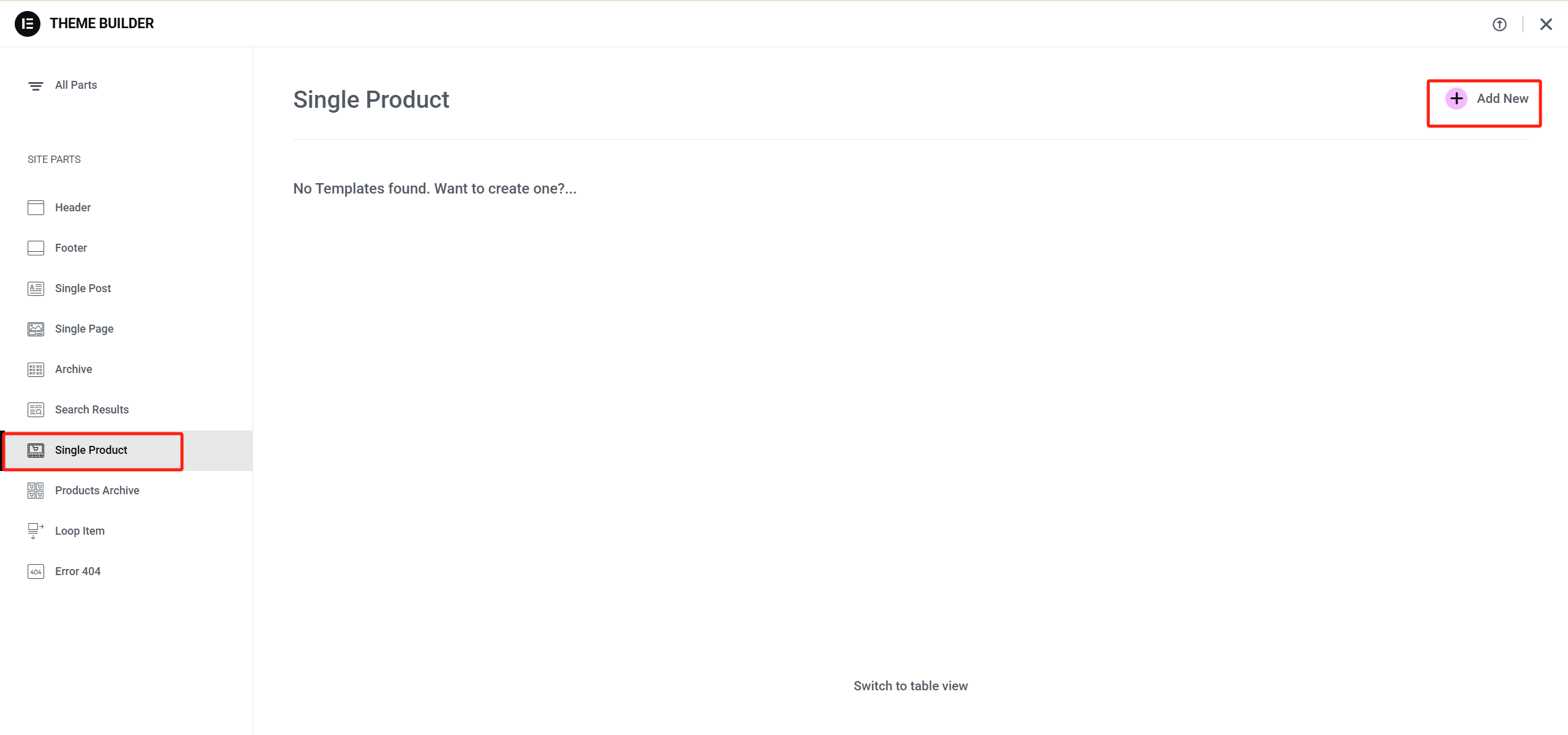

• Click on "Single Product" and select "Add New".

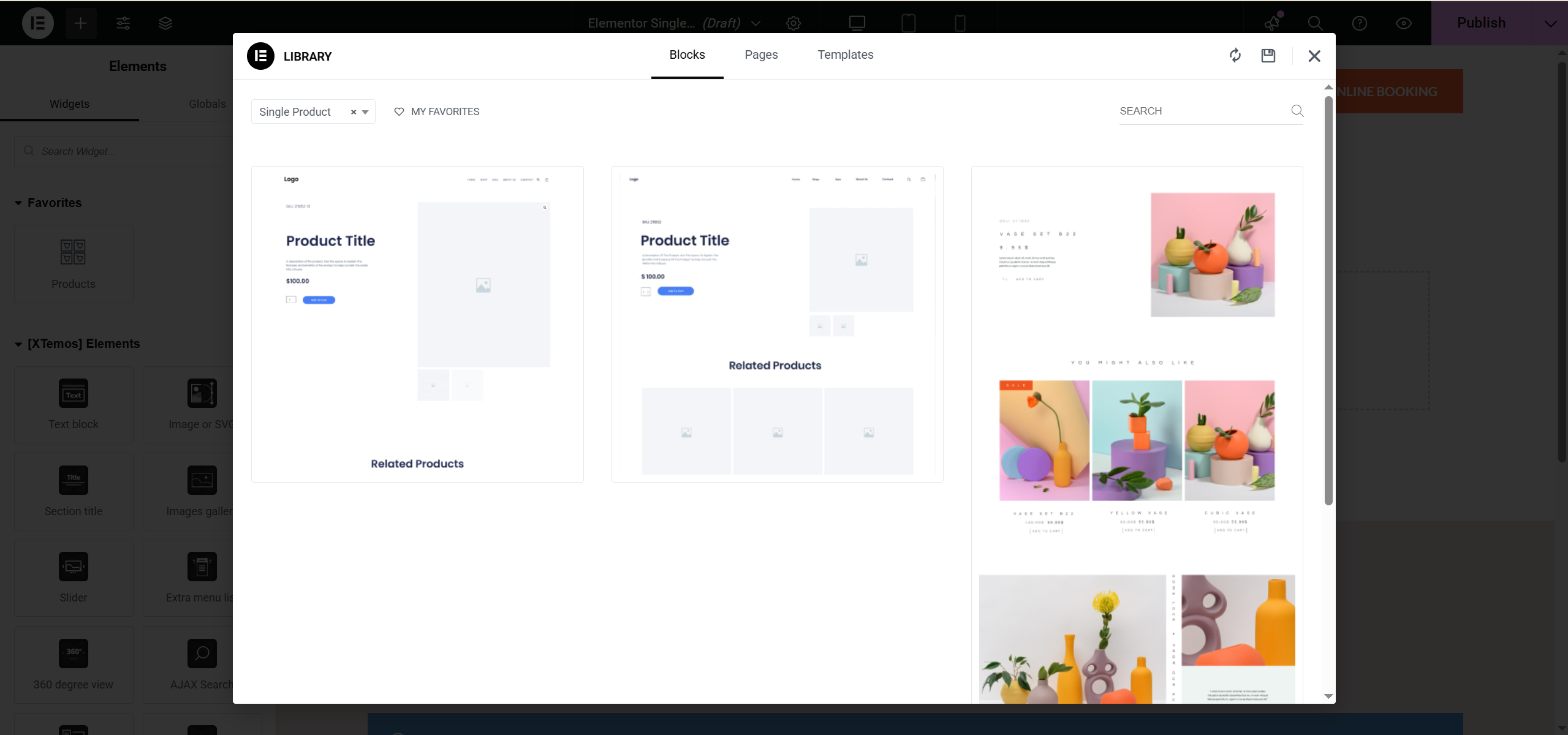

• Use a blank template or import an official preset

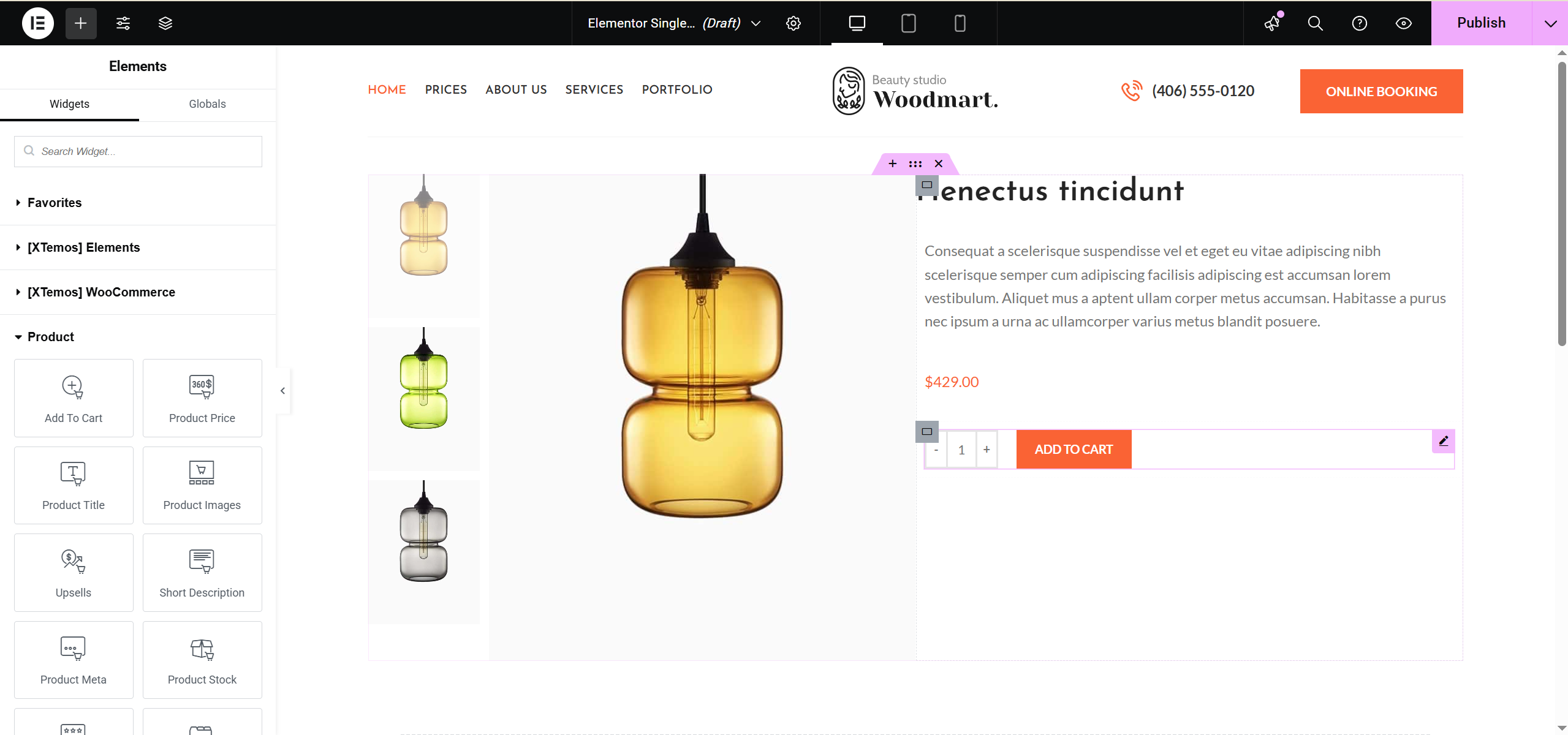

• Drag in the following widgets:
  • Product Title
  • Product Image
  • Product Price
  • Add to Cart
  • Product Rating
  • Product Meta
  • Product Content
  • Product Data Tabs

• Click "Publish" when you're done.
• Select the scope of the template in the condition settings (e.g., apply to all products or a certain category)

III. Advanced Customization Techniques

These tips make the product showcase page more expressive and recognizable:

1. Adding dynamic labels (requires Pro)

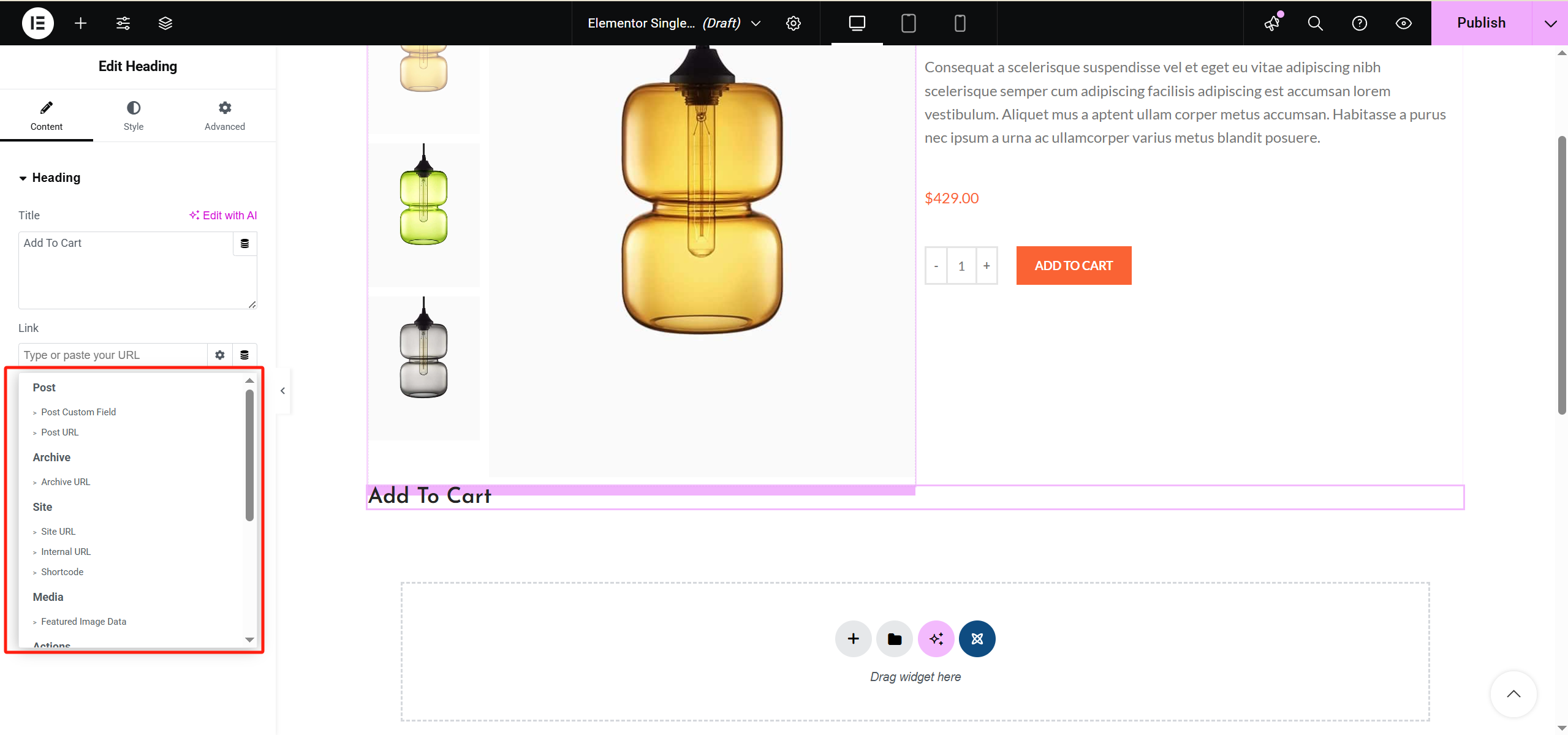

Elementor Pro's "dynamic labeling"The feature allows you to embed product fields in text, buttons, and titles.

Example:

• Limited time promotion: {{product_title}}
• Button text: Buy Now {{product_price}}

2. Using advanced style settings

• Add interactive effects such as hover shadows, image zoom, etc. to product cards
• Adjustment of product drawing size ratio (e.g. 1:1, 4:3)
• Customize button colors, borders, fonts and other detail styles

3. Responsive and optimized layout

Elementor can be individually styled for desktop, tablet, and mobile:

• Control the number of columns, e.g. 4 columns for desktop, 2 or 1 columns for mobile automatically.
• Hide unnecessary elements on mobile, such as ratings, profiles, etc.
• Adjust buttons and font sizes to ensure legibility across devices

V. Summary

Elementor together with WooCommerce The combination of the product widgets and theme builder greatly expands the design space of product pages. Whether it's a home page product recommendation block or reorganizing the structure of a product detail page, you only need to skillfully use the product widgets and theme builder to build a visually strong and clear display module.

For higher functionality needs, you can also combine extensions such as Crocoblock, Element Pack, Essential Addons, etc. to build commercial-grade e-commerce websites.
