Resolving Cloudflare Error 521: Connection Timeout and Resource Limit Issues

After using Cloudflare on the site, from time to time I encountered the Error 521This error usually means that Cloudflare was unable to establish a connection with the site's source server.Cloudflare provides strong protection and acceleration, but issues such as connection timeouts and resource limitations can still cause intermittent 521 errors.

What is Error 521?

Error 521 is an HTTP A status code indicating that Cloudflare was unable to connect to the site's origin server. That is, when Cloudflare requested a connection to the source server, the server did not respond or rejected the connection request.

Normally when Error 521 occurs, the page displays a message: "Web server is down", meaning that the site's source server is not responding to requests. While there is nothing wrong with Cloudflare itself, there is some network or server configuration issue that prevents it from communicating properly with the source server.

Possible causes

1. Server connection timeout

The server may have been damaged due tofirewallsSetting,network problemmaybeInsufficient hardware resources and could not respond quickly enough to Cloudflare's request, resulting in a timeout. In this case, when Cloudflare tries to establish a connection, the source server does not respond in a timely manner, causing the connection to fail.

Solution:

• Check the server logs to see if there are records of failed connections to Cloudflare.

• Ensure that the server's firewall is not blocking Cloudflare's IP address.
• Check the server's bandwidth and resource usage to ensure that there are no overloads or resource constraints.

2. Firewall configuration on the source server

rootserver (computer)Your firewall may have restrictions in place that block traffic from Cloudflare.Cloudflare's IP addresses are not always whitelisted as allowed, so you need to make sure that Cloudflare's IP address range is whitelisted.

Solution:

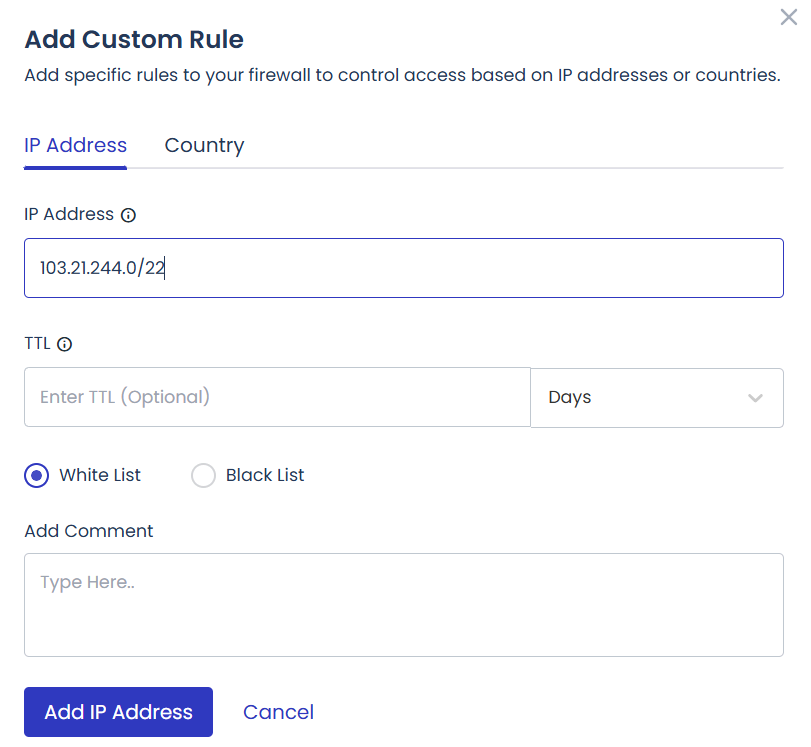

• Adding Cloudflare to the server's firewall IP Address List. You can find the full IP address range on Cloudflare's official website:Cloudflare IP Ranges

• If you are using the cPanel or other control panel, check and make sure that Cloudflare's IP address is not being blocked by mistake, go to theFirewall SettingsincludeWhitelisted IP addresses for CloudflareThe

3. Resource constraints of the website

If the web server has Resource constraintsFor example CPU Limit,lack of memory maybe comprehensive databaseToo many connectionsThese may cause the source server to fail to respond to a Cloudflare request, resulting in Error 521.

Solution:

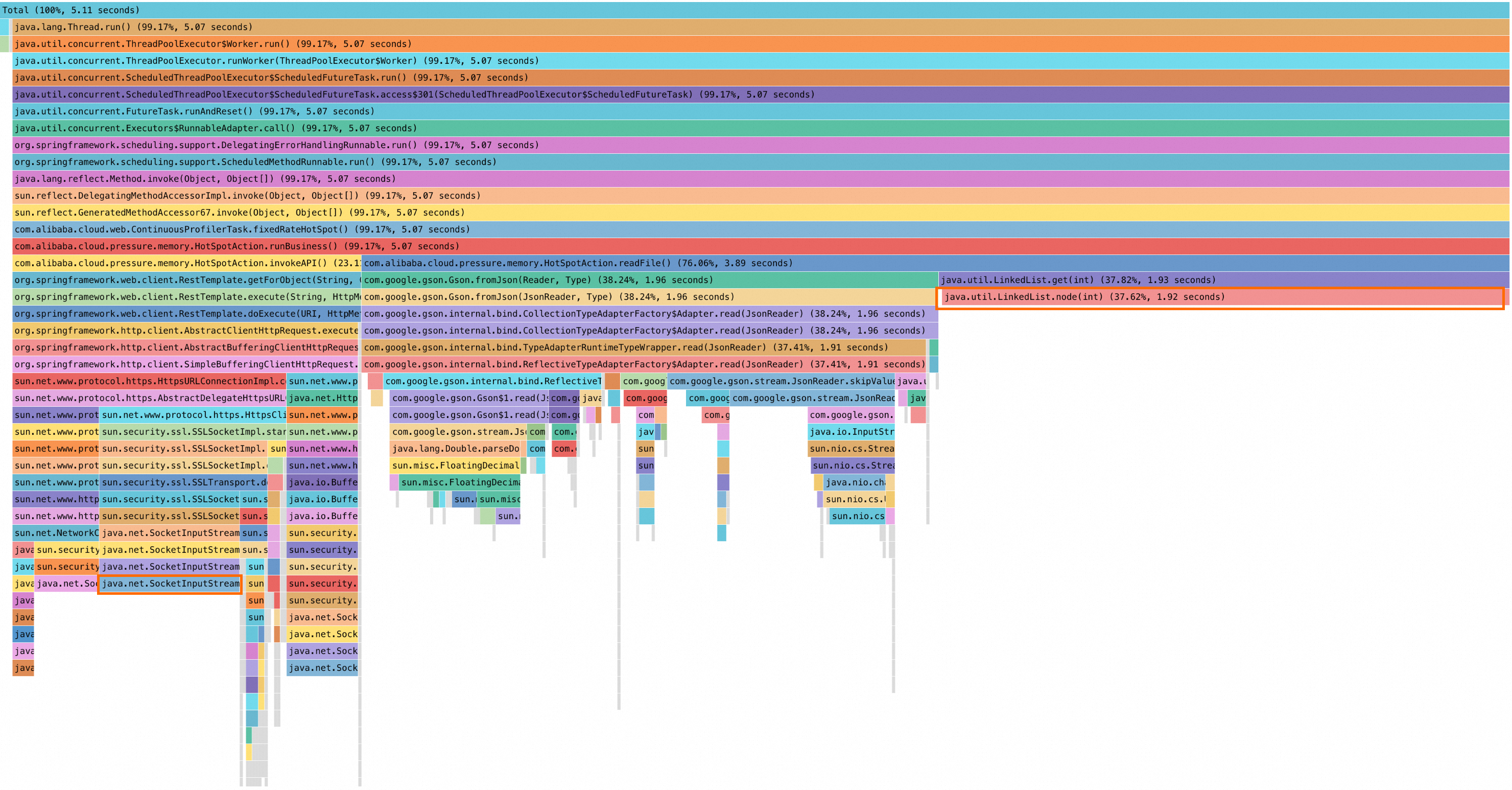

• Check the resource usage of your website, especially when traffic is high. This can be done using the Server Monitoring Tools maybe Resource analysis tools for web hosting Check for resource bottlenecks.

• If resource constraints are found, consider Upgrade Server Configuration maybe Optimize website performance, reducing unnecessary resource utilization.

4. Cloudflare not set up properly

Sometimes, errors in the Cloudflare configuration itself can cause the connection to fail. For example, an error in the DNS Configuration maybe SSL/TLS Settings may prevent Cloudflare from establishing a secure connection to the source server.

Solution:

• Verify that the DNS settings are correct and that Cloudflare's agent state is enabled.

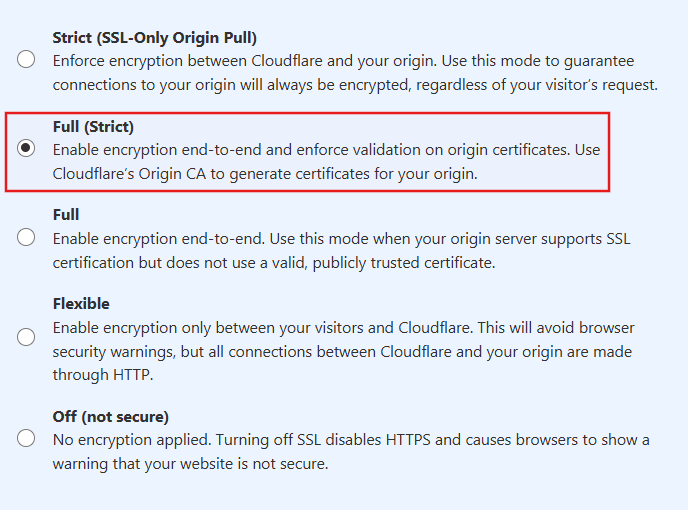

• If you use the SSL/TLS encryption to ensure that the server-side certificate is compatible with Cloudflare's configuration. Optionally "Flexible SSL" maybe "Full SSL" configured to ensure a stable encrypted connection to the source server.

How to diagnose and resolve Error 521?

1. Checking the Cloudflare log

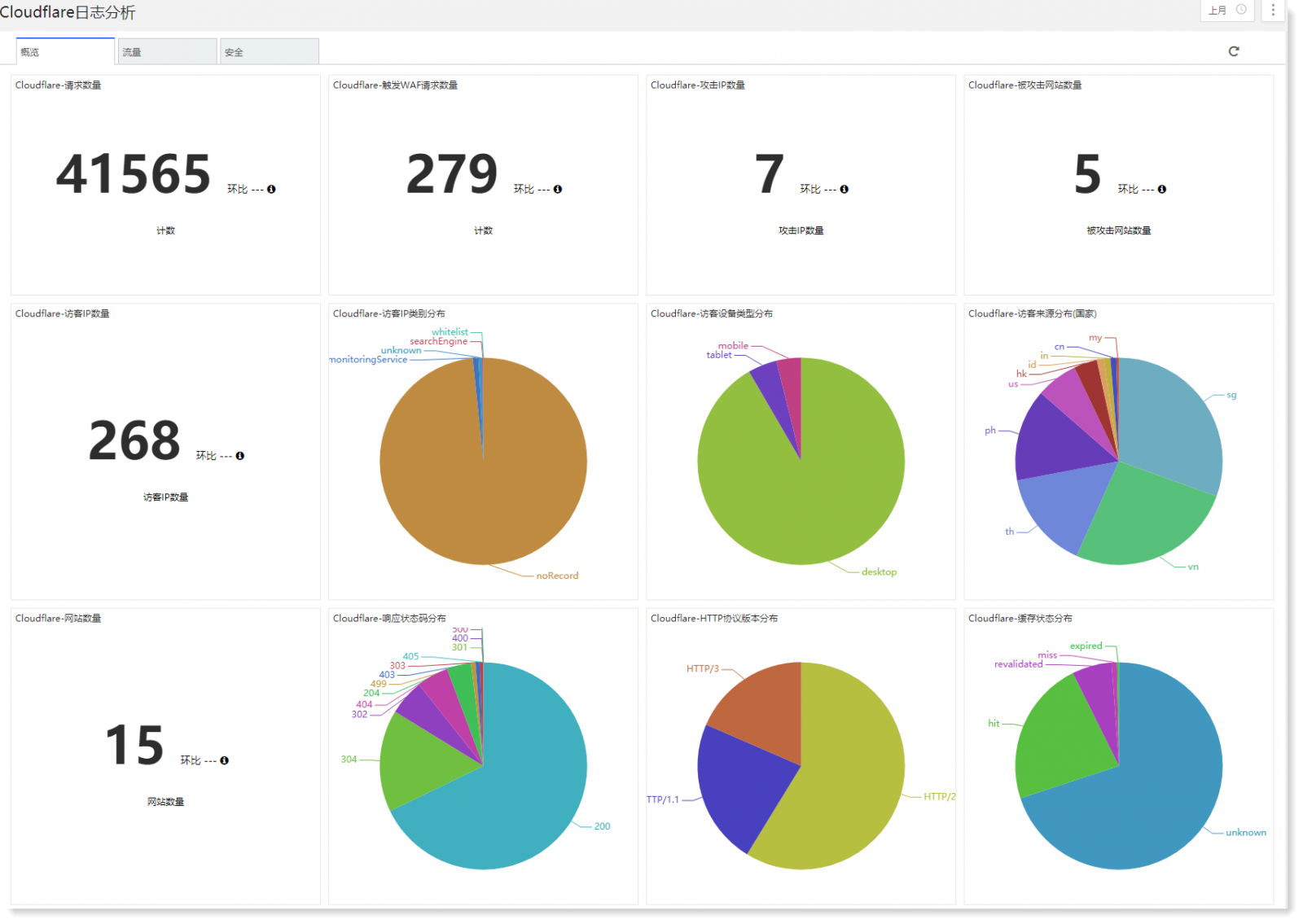

Cloudflare provides detailedAccess log, which can help you analyze exactly why the error occurred. You can view it in the Cloudflare dashboardAccess log, look at the failed requests and find out why the source server response failed.

2. Test server response

You can use command-line tools to test the connection between the server and Cloudflare. For example, using the ping (computing) maybe curl command to check the response from the source server:

ping yourdomain.com

Or:

curl -I https://yourdomain.com

These tools can help you understand if there are server timeouts or connection problems.

3. Contacting hosting providers

If none of the above resolves the problem, you may need to contact your web hosting provider and have them check server settings, resource usage, or perform a deeper network troubleshooting.

wrap-up

Error 521 Sometimes it's not Cloudflare itself that's the problem, but the sourceserver (computer)Errors that occur when a connection cannot be established. Understand the reasons behind the Firewall Settings,Resource constraints,SSL/TLS Configuration respond in singing Connection timeout etc., you can solve the problem more effectively. By gradually checking and adjusting the server configuration and optimizing the use of resources, you can improve the stability of your website.
