502 Does the frequency of errors indicate a need to upgrade the server?

In the day-to-day operation of websites and applications, the502 Bad Gateway Errors are a common problem. When 502 errors occur frequently, many people may wonder if it is time to upgrade their servers. This question is not only about technology, but also about performance optimization and system architecture design. In this article, we will analyze the reasons for the frequent occurrence of 502 errors, explore whether it means the server needs to be upgraded, and how to solve the problem by optimizing the architecture.

What is 502 Bad Gateway error?

502 Bad Gateway The error is when a server receives an invalid response from an upstream server when acting as a gateway or proxy server. This error typically occurs when using a reverse proxy (such as the Nginx maybe Apache) scenario, a 502 error is returned when the reverse proxy server is unable to communicate effectively with the upstream server. This is specifically shown as:

• 502 Bad Gateway
• 502 Service Unavailable
• 502 Proxy Error

The presence of a 502 error means that the server is unable to get a response to the request properly, usually due to back-end server downtime, misconfiguration, or communication delays.

502 Reasons for frequent errors

The frequency of 502 errors may expose a variety of underlying issues that are not necessarily caused by inadequate server hardware performance. Here are a few common reasons why 502 errors may occur:

1. Reverse proxy connection issues with upstream servers

Reverse proxy servers (such asNginxor Apache) will forward the request to the back-end application server or database server. If the reverse proxy is unable to establish a valid connection with the upstream server, it will return a 502 error.

Common Causes:

• The upstream server is down or not responding.
• The network connection is unstable or interrupted.
• Misconfiguration of the upstream server (e.g. wrong IP address, port, path, etc.).

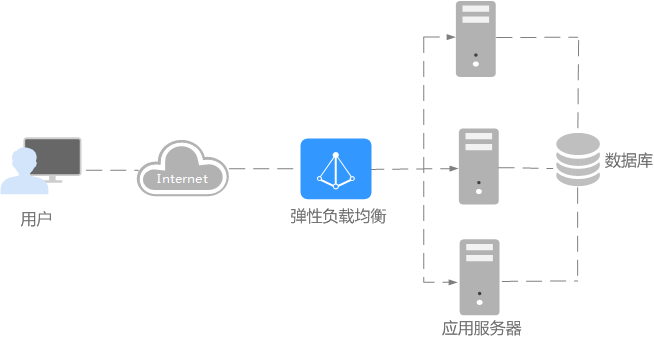

2. Load balancing issues

Load balancing is a technique that ensures that requests are distributed to multiple back-end servers. If load balancing is misconfigured, or if certain back-end servers are unavailable, the load balancer may forward requests to unavailable servers, resulting in the502 ErrorThe

Common Causes:

• Incorrect load balancing configuration.
• The back-end server cannot handle the load or is overloaded.

3. Application server failure or performance bottleneck

The application server handles business logic and user requests. If the application server runs out of resources or crashes, it may not be able to process requests from the reverse proxy, resulting in a 502 error.

Common Causes:

• The application server crashes or becomes overloaded.
• Memory leaks or excessive CPU usage.
• Resource bottlenecks cause servers to fail to respond to requests in a timely manner.

4. Database issues

Most applications require access tocomprehensive databaseIf the database server fails or responds slowly, the application may not be able to obtain the data, resulting in a 502 error.

Common Causes:

• The database server is down or overloaded.
• Database query timeouts or performance bottlenecks.

5. Configuration errors or code problems

Configuration file errors or unusual logic in the code can also lead to 502 errors. Especially between reverse proxies and application servers, configuration errors can result in requests not being delivered correctly.

Common Causes:

• Reverse proxy server configuration error.
• An unhandled exception or error in the application.

502 Does the frequency of errors mean that the server needs to be upgraded?

Frequent 502 errors do not necessarily mean that you need to upgrade your server immediately.The frequency of 502 errors is usually an architectural, configuration, or resource management issue. Here are some considerations for whether you need to upgrade your server:

1. Is it a resource bottleneck that is causing the problem?

If the frequency of 502 errors is due to insufficient server resources (such as memory,CPU, hard disks, etc.) caused by the server, it may be necessary to consider upgrading the server. Especially when there is a surge in traffic or an increase in business demand, the hardware resources of the server may not be sufficient to support the current load.

Solution:

• Upgrade Hardware: Increase RAM, CPU, hard disk space, etc. to handle higher loads.
• Extended Cluster: Distribute traffic to multiple servers by increasing the number of servers or using load balancing.

2. Are there network problems?

The 502 error may be caused by network connectivity issues between the reverse proxy and the upstream server. If this is the case, upgrading the server hardware may not solve the problem; instead, the network architecture and configuration needs to be optimized.

Solution:

• Optimize network connectivity: Ensure that the network connection between the reverse proxy server and the upstream server is stable, and configure a reasonable timeout period.

• Optimize DNS configuration: If there is a delay or error in DNS resolution, it may cause a 502 error, check and optimize the DNS settings.

3. Is it a configuration issue or a system architecture issue?

If the frequency of 502 errors is due toServer misconfigurationIf the problem is caused by a load balancing configuration issue or an application code issue, simply upgrading the server hardware will not solve the problem. The existing server architecture and configuration needs to be revisited.

Solution:

• Optimize server configuration: Check the configuration of reverse proxies, load balancing, and application servers to make sure they are correct.
• Fixing Code Issues: Optimize application performance to avoid memory leaks or excessive resource consumption.

• Use of Distributed Architecture: Reduce single points of failure and ensure high availability through distributed architecture and microservices.

4. Is there a need for greater scalability?

If your application is expanding and the amount of users, requests and data being processed has increased dramatically, it may be necessary to consider upgrading the server architecture, not just the hardware.

Solution:

• Using Cloud Services: Cloud services provide elastic computing resources that can be dynamically scaled according to demand, avoiding bottlenecks caused by insufficient hardware resources.
• Enabling automatic scaling: Using container technology (e.g.Docker, Kubernetes) and auto-scaling technology to ensure that the system can automatically add or subtract resources based on demand.

5. Is there a need to improve redundancy and fault tolerance?

If 502 errors are frequent, it may be due to a single point of failure of some back-end service, causing problems with the overall system. To solve this problem, the reliability of the system can be improved by increasing redundancy.

Solution:

• Using High Availability Architecture: Enhance system fault tolerance and redundancy through database master-slave replication, load balancing, and automatic failover.
• regular health checkup: Ensure that health checks are carried out for all services and that problems are identified and dealt with in a timely manner.

reach a verdict

502 Bad Gateway Frequent errors do not necessarily mean that you need to upgrade your server immediately. Often times, frequent 502 errors reflect architectural issues, misconfigurations, or resource management problems. By checking and optimizing the configuration and performance of reverse proxies, load balancing, application servers, and databases, you can effectively reduce the occurrence of 502 errors. Only when there is a resource bottleneck, insufficient hardware performance, or high scalability requirements, should you consider upgrading your servers. Through system optimization and reasonable architectural design, the stability and availability of the website can be improved to avoid the degradation of user experience caused by 502 errors.
